In short, we have focused on the basic features that acoustic guitar players require: An amazing-sounding preamp, Tuner Out, and transformer-balanced DI Out for your FOH engineer, who will be very happy with the signal you provide from your AP1 Compact.
The pedal is designed for low voltages and will accept 9-18VDC.
Whether you use piezo pickups or Sound-hole microphones, AP1 Compact will make your guitar sound the way it was meant to.
The DI features the exact same preamp design and custom-made audio transformer as the AP1.
| Input Impedance | 5MΩ | |
| Output Load D.I. | 2kΩ or more | |
| Dim. Metric | 130 x 145 x 40/65 mm (WxHxD) | |
| Dim. Imperial | 5.12” x 5.71” x 1.57”/2.56” (WxHxD) | |
| Weight | 1 kg / 2 lbs. 3 oz. | |
| Power |
|
|
AP1C QUICK GUIDE

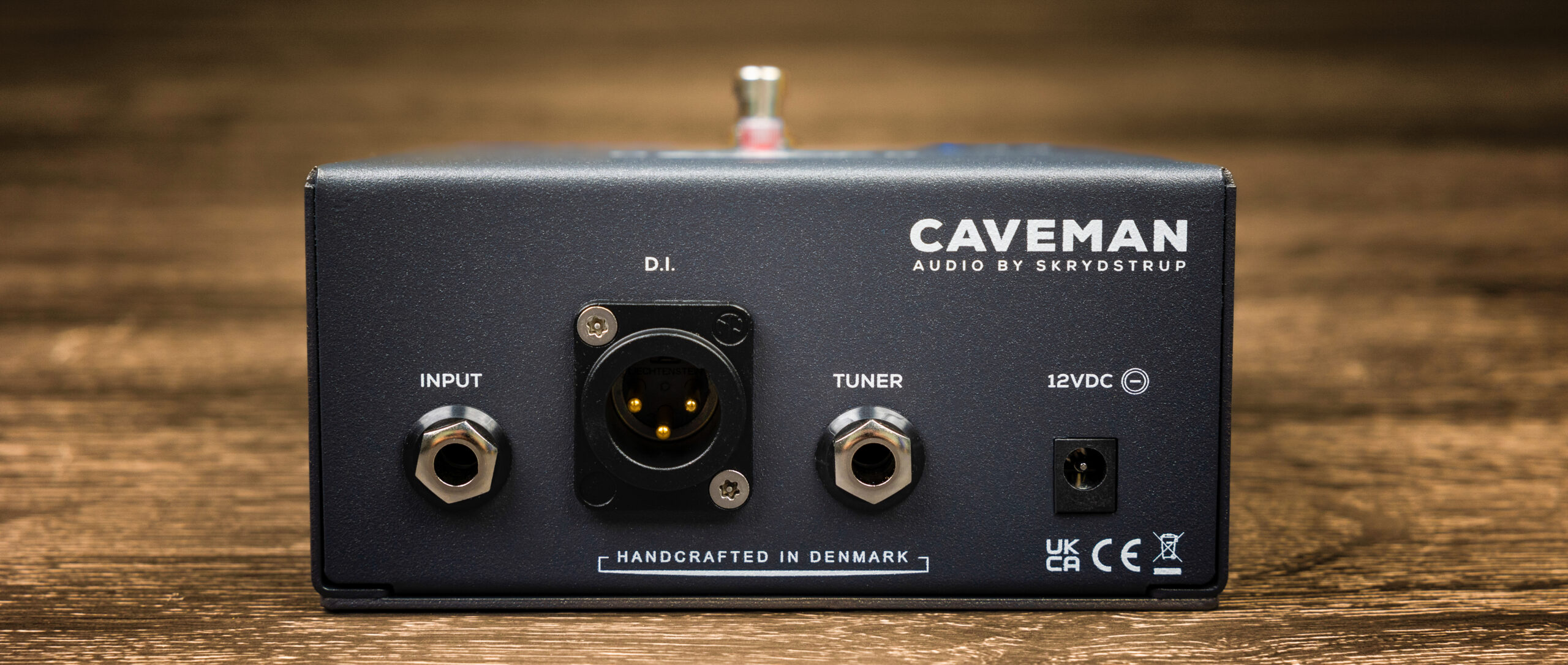

- Hi-Z Cable Input
- Transformer-balanced Gold-plated Neutrik XLR D.I.
- Tuner Output
- Unique RFI protection
- Mute function for silent tuning.
- All Caveman Audio products come with a 10 Year Warranty
- All Caveman Audio products come in road-ready, zinc-plated steel enclosures
Q: Which power supply would you recommend for the AP1 Compact ?
A: We highly recommend the Cioks power supplies, if you need multiple DC outlets.
Q: Can I use a 12VDC supply ?
A: Yes – you can use anywhere from 9VDC to 18VDC.
Q: Can I use my 12VDC @ 500mA power supply with the AP1 Compact ?
A: Yes you can. The AP1 Compact requires a minimum of 100mA – so everything higher than 100mA is fine.
Voltage (VDC) should always be precisely what the unit requires.
Current (mA) should be the same or higher as required by the unit.
The unit will only draw the amount of current it requires.
“The AP1 Compact is a more affordable version of our acclaimed AP1 Acoustic Preamp
– but with zero compromises on the sonic qualities.
It’s the perfect Acoustic Preamp / D.I. for your pedalboard.”
Dominic Miller with his AP1

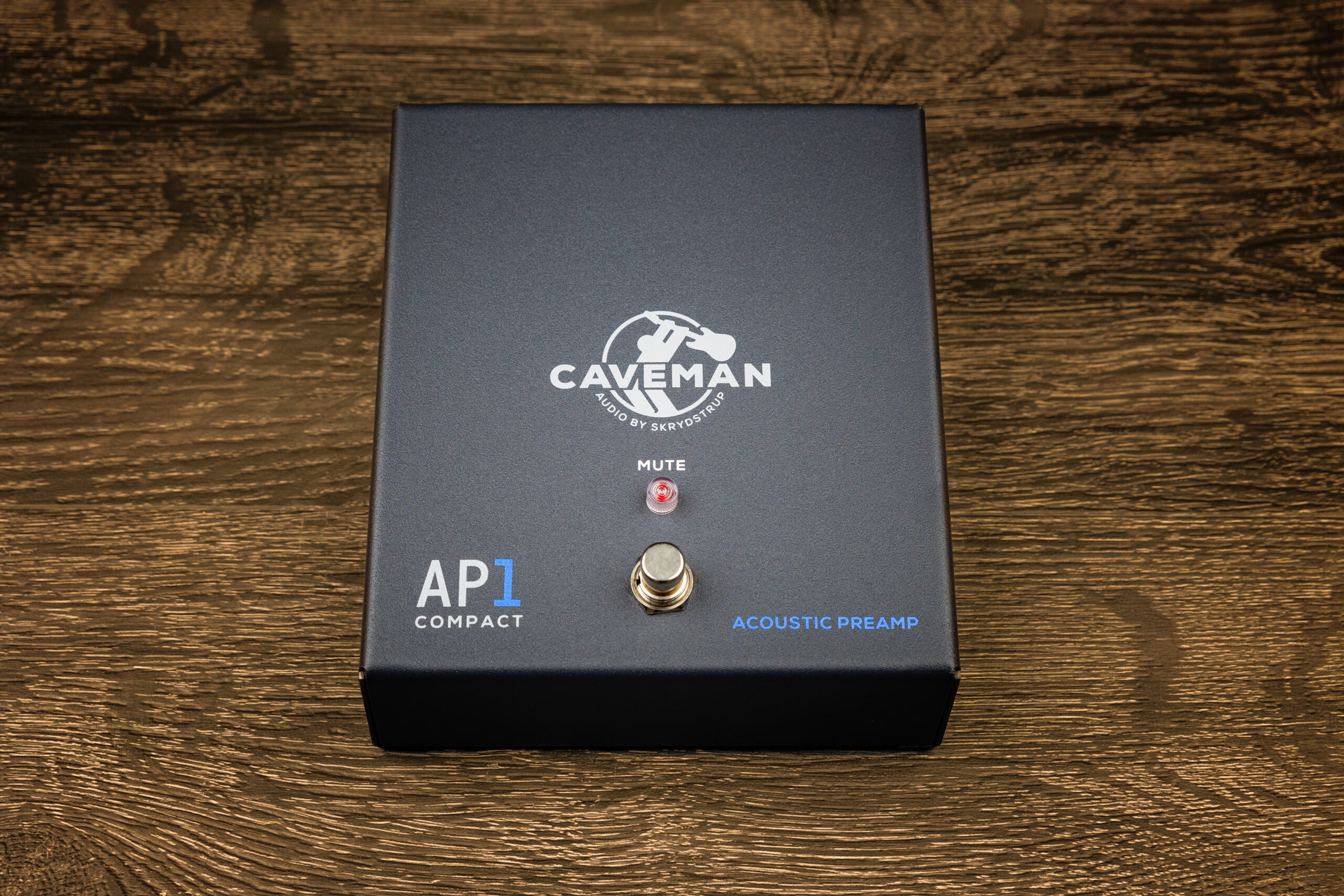

Get close to the AP1C
Demo by A.Barrero
